Pre - Insulated Terminals

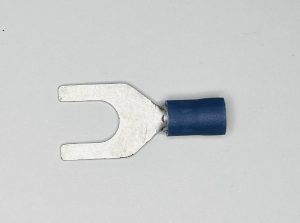

Insulated Fork Pic

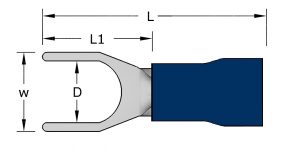

Pre Insulated Spade Terminal

Fork Terminals

Colour : Red, Blue, Yellow

Fork terminals are used when terminating wires to a screw or stud.

The shape of the fork terminal allows the installation of the terminals in  tight spaces.

The "V" grooves inside the barrel assist in providing best contact and maximum pull out resistance.

Material : Tin Plated Electrolytic Copper / Vinyl.

Temperature Range : -10°C to 75°C

Rated at 600V.

Pre Insulated Chart Download

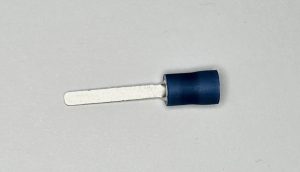

Insulated Flat Blade

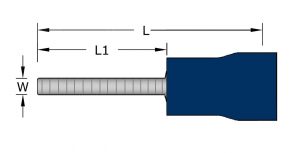

Pre Insulated Flat Blade Terminal

Flat Blade Terminals

Colour : Red, Blue, Yellow

Flat Blade Terminals.

A flat blade terminal, is a type of single wire connection using a flat conductive blade which is inserted into a blade receptacle. This is available as an insulated or un-insulated terminal, with different lengths. Can be used when connecting to Relays, Motors, Timers, Switches, etc.

The "V" grooves inside the barrel assist in providing best contact and maximum pull out resistance.

Material : Tin Plated Electrolytic Copper / Vinyl.

Temperature Range : -10°C to 75°C

Rated at 600V.

Pre Insulated Chart Download

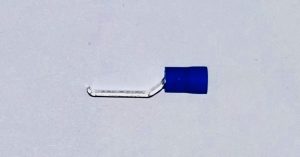

Insulated Hook Blad
Pre-insulated Hook Blade Terminal

Hook Blade Terminals

Colour : Red, Blue, Yellow

Hook Blade Terminals.

A hook blade terminal, is a single wire connection using a conductive blade which creates a secure and reliable, electrical and mechanical connection.
Similar applications as a flat blade terminal with better mechanical connection (as a result of the hook)

Material : Tin Plated Electrolytic Copper / Vinyl.

Temperature Range : -10°C to 75°C

Rated at 600V.

Pre Insulated Chart Download
Pre Insulated Pin Terminal

Pin Terminals

Colour : Red, Blue, Yellow

Pin terminals are commonly used to connect wires to terminal blocks. For applications that involve the use of a screw or clamp, pin terminals provide quick and easy connections.

The "V" grooves inside the barrel assist in providing best contact and maximum pull out resistance.

Material : Tin Plated Electrolytic Copper / Vinyl.

Temperature Range : -10°C to 75°C

Rated at 600V.

Pre Insulated Chart Download
