Low Voltage Heatshrink Joints (Budget)
ALVJB - are low voltage heatshrink joints designed for both standard and submersible cables. The hot melt adhesive combined with the use of ABFM black mastic forms an excellent water seal. The outer sleeve is UV resistant and has excellent mechanical properties.
Excellent impact and abrasion resistance.
Excellent environmental crack and UV resistance
Hot melt ensures an excellent water seal
High electrical insulation properties
Shrink Ratio 3:1
Operating Temperature -55°C to 110°C
Minimum shrink temperature 120°C
Colour Black
Voltage range - 600 / 1000V
Normal and submersible joints
Quick and easy installation
Suitable for 2 to 4 core PVC cables.
Low Voltage Heatshrink Joints
ALVJ - are low voltage heatshrink joints designed for both standard and submersible cables. The hot melt adhesive combined with the use of ABFM black mastic forms an excellent water seal. The outer sleeve is UV resistant and has excellent mechanical properties.
ALVJ - Supplied with Roll Springs and Braid
Excellent impact and abrasion resistance.
Excellent environmental crack and UV resistance
Hot melt ensures an excellent water seal
High electrical insulation properties
Shrink Ratio 3:1
Operating Temperature -55°C to 110°C
Minimum shrink temperature 120°C
Colour Black
Voltage range - 600 / 1000V
Normal and submersible joints
Quick and easy installation
Suitable for 2 to 4 core PVC and SWA cables.

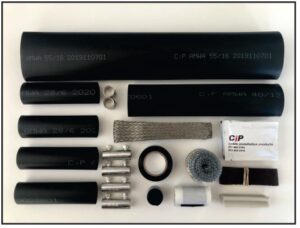

Low Voltage Heatshrink Joints
ALVJ...ES - are low voltage heatshrink cable joints designed to join 2 - 4 core cable,1KV PVC and XLPE cables. Core separators are included to further improve the high electrical insulation properties.
ALVJ...ES - Supplied with black filler mastic (ABFM) combined with the hot melt adhesive lining in the medium wall tube (AMWA) ensures an excellent water/moisture seal.
ALVJ...ES - Supplied with mechanical Torque Shear connectors / ferrules
Excellent impact and abrasion resistance.
Excellent environmental crack and UV resistance
Hot melt ensures an excellent water seal
Hot melt ensures an excellent water seal
High electrical insulation properties
Type tested and in compliance with BS EN50393 and NRS074-2
In compliance with ESKOM specifications
System can be energized immediately after installation
Shrink Ratio 3:1
Operating Temperature -55°C to 110°C
Minimum shrink temperature 120°C
Colour Black
Suitable for demanding environments
Voltage rating - 1000V
Quick and easy installation
Suitable for 2 to 4 core (1KV) PVC and XLPE cables.
